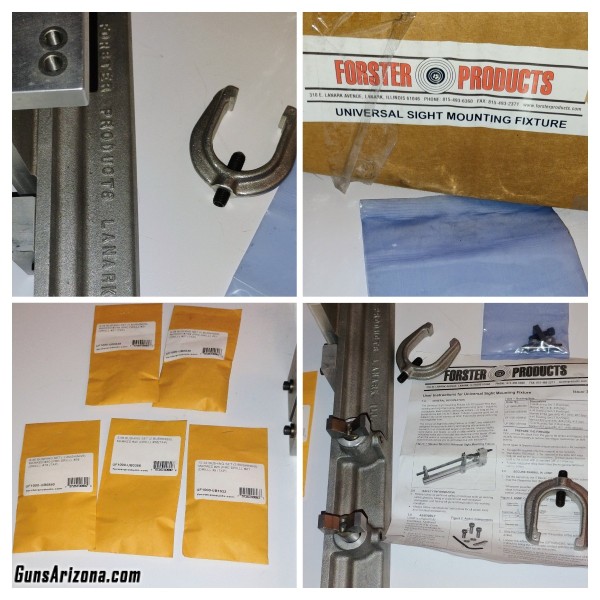

Forster Universal Sight Mounting Fixture

Everything is Brand

Plus

4 additional bushings Sets

UF1000-UB0356

UF1000-UB0648

UF1000-UB0840

UF1000-UB1032

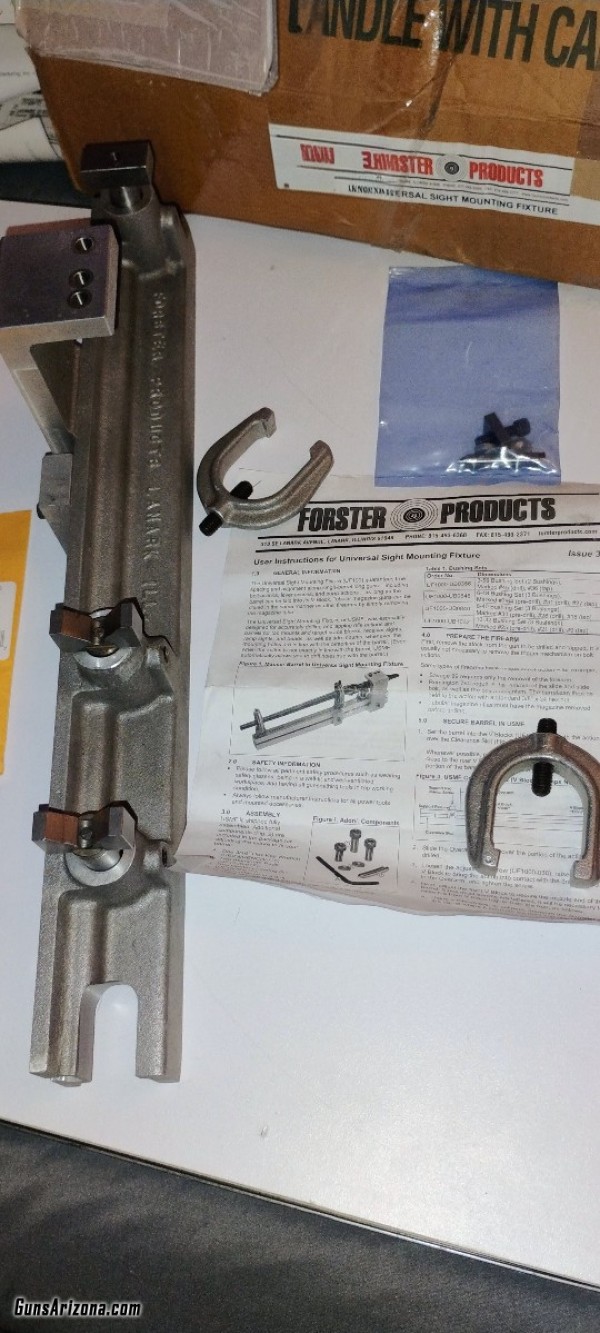

The Forster Universal Sight Mounting Fixture was designed to meet the exacting requirements of gunsmiths who drill and tap holes for the mounting of scope mounts, receiver sights, and shotgun beads. The fixture will accommodate any single-barreled long gun – including bolt actions, lever actions, and pump actions – as long as the barrel can be laid into the “V” blocks of the fixture. Tubular magazine guns can be drilled in the same manner as other firearms by simply removing the magazine tube.

The body is quality manufactured from an aluminum casting, then precision machined. The two “V” blocks are made from hardened steel accurately ground on the “V,” as well as the shaft. The blocks are adjustable for height.

Universal Site Mounting Fixture includes       (1) 6-48 bushings.

Retails $480

Bushings Retail $144

Total Retail $624

Asking $500



Includes 4 additional bushings

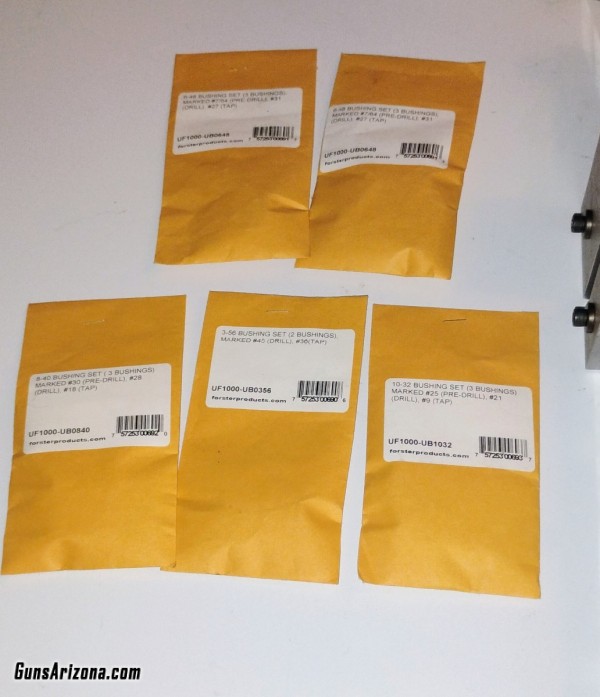

Drill Jig Bushing Sets for Universal Sight Mounting Fixture

Tap-size-threads



3-56 Threads

3-56 Bushing Set for USMF – UF1000-UB0356

Two 3-56 Bushings, Drill marked #45, Tap #36

$36



6-48 Threads

6-48 Bushing Set for USMF – UF1000-UB0648

Three 6-48 Bushings, Pre-drill marked #7/64, Drill marked #31, Tap #27

$36



8-40 Threads

8-40 Bushing Set for USMF – UF1000-UB0840

Three 8-40 Bushings, Pre-drill marked #30, Drill marked #28, Tap #18

$36



10-32 Threads

10-32 Bushing Set for USMF – UF1000-UB1032

Three 10-32 Bushings, Pre-drill marked #25, Drill marked #21, Tap #9

$36



Retails $144



Meetup at Quick Trip

38th Ave and Greenway

3806 W Greenway Rd, Phoenix, AZ 85053
